Owon Touch Screen Digital Storage Oscilloscope

Application

  • Electronic circuit debugging
  • Circuit testing
  • Design and Manufacture
  • Education and Training
  • Automobile maintenance and testing

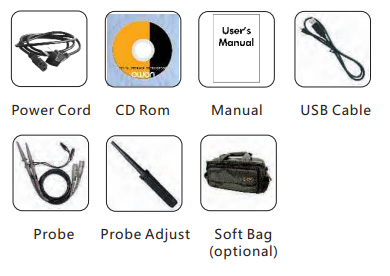

Accessories

The accessories subject to final delivery.

Quick Enquiry

Enter Your Details

TDS Series

100 MHz.,Touch Screen, 4 CH, VGA, Coloured LCD 8 “, 1GS/s, USB+Software

Model No.: TDS7104

Touch Screen Digital Storage Oscilloscope

  • 100MHz bandwidth, 1GS/s realtime sample rate
  • 7.6M record length
  • 50,000 wfms/s waveform capture rate
  • waveform zooming (horizontal / vertical), and saving
  • FFT points (length, and resolution variable)
  • multi-window extension
  • 8 inch 800 x 600 pixels high resolution LCD
  • multi- communication interface : USB, VGA, and LAN
  • LabVIEW supported

Performance Specifications

Model TDS7104
Bandwidth 100MHz
Channel 4
Sample Rate 1GS/s
Waveform Capture Rate 50,000 wfms/s
Display 8" color LCD
Input Coupling DC, AC, and GND
Input Impedance 1MΩ ± 2%, in parallel with 15pF ± 5pF ; 50Ω ± 1%
Probe Attenuation Factor 1X, 10X, 100X, 1000X
Max Input Voltage 1MΩ input impedance : 400V (DC + AC peak) ;
50Ω input impedance : 5V (DC + AC peak)
Channel Isolation 50Hz:100:1 ; 10MHz:40:1
Interpolation sin (x) / x
Record Length 7.6M
Horizontal Scale (s/div) 2ns/div - 100s/div, step by 1 - 2 - 5
Interval (△T) Accuracy (full bandwidth) Single : ±(1 interval time + 100ppm × reading + 0.6ns),
Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns)
Vertical Resolution (A/D) 8 bits (4 channels simultaneously)
Vertical Sensitivity 2mV/div - 10V/div (at input)
Analog Bandwidth 100MHz
LF Respond (AC, -3dB) ≥10Hz (at input, AC coupling, -3dB)
Rise Time ≤3.5ns
DC Accuracy ±3%
Trigger Type Edge, Pulse, Video, and Slope
Trigger Mode Auto, Normal, and Single
Trigger Level Range ±6 division from the screen center
Trigger Level Accuracy (typical) ±0.3 division
Line / Field Frequency (video) NTSC, PAL, and SECAM standard
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty
Waveform Math +, -, *, /, FFT
Waveform Storage 4 reference waveforms
Lissajous Figure Bandwidth full bandwidth
Phase Difference ±3 degrees
Cursor Measurement △V, and △T between cursors
Communication Port USB host, USB device, VGA (optional), and LAN
Power Supply 100 - 240 V AC, 50/60Hz, CAT II
Dimension (W x H x D) 380 x 180 x 115 (mm)
Device Weight 1.50 kg
Specifications subject to change without prior notice.
