Owon Spectrum Analyzer Distributor in India Enlarge View Download PDF Print

Share

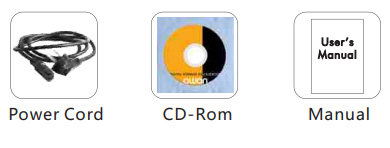

Accessories

The accessories subject to final delivery.

Owon Spectrum Analyzer Distributor in India

Quick Enquiry

Enter Your Details

3.6GHz., Tracking Generator, Coloured LCD 10.4", VGA, PhoneJack, USB+Software

Model No.: XSA 1036-TG

Spectrum Analyzer

  • Frequency Range from 9 kHz up to 3.6 GHz
  • 150dBm Displayed Average Noise Level
  • Phase Noise -82dBc/Hz @1Gz and offset at 10KHz
  • Total Amplitude Accuracy <1.5dB
  • 10Hz Minimum Resolution Bandwidth (RBW)
  • EMI Pre-compliance Test Kit
  • 1.5 GHz Tracking Generator Kit
  • 10.4 inches display

Performance Specifications

Model No. XSA1036-TG
Frequency Range 9kHz - 3.6GHz
Frequency Resolution 1Hz
Aging Rate < 1ppm/year
SSB Phase Noise(fc=1GHz) < -85dbc/Hz@10kHz offset
< -100dBc/Hz@100kHz offset(typ.)
Resolution Bandwidth(-3db) 10Hz -500kHz, 1-10 step; 1MHz-3MHz
Resolution Bandwidth(-6db) 200Hz,9kHz,120KHz
Video Bandwidth(-3db) 10Hz-3MHz,1-3-10 step
Displayed Average Noise Level(DANL) PA on, RBW=VBW=100Hz, sample detector, trace average ≥ 50, tracking generator off, normalized to 1Hz
100kHz-1MHz -150dBm(typ.)
1MHz-5MHz -150dBm(typ.)
5MHz-1.5GHz -148dBm(typ.)
Trace Detectors position-peak, negative-peak, sample, normal, RMS
Trace Functions clear write, max hold, min hold, view, blank, average
Units of Level Axis dBm, dBpW, dBμW, W, dBμV, dBmV,V
Level Measurement Uncertainty < 1.5db(nom.)
TG Frequency Range 100kHz-1.5GHz
TG Output Level Range -30dBm-0dbm
TG Output Level Resolution 1dB
Interfaces LAN, USB, VGA, phone jack
