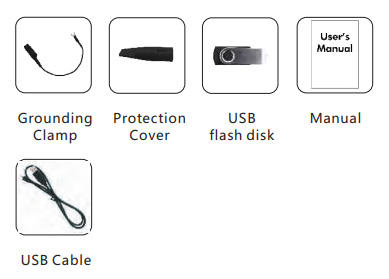

The accessories subject to final delivery.
Model No.: RDS1021
Pen-type PC Oscilloscope
Pen-type design with easy portability, the ideal solution for on-site measurement.
Special metal material made probe- tip assures durable lifetime.

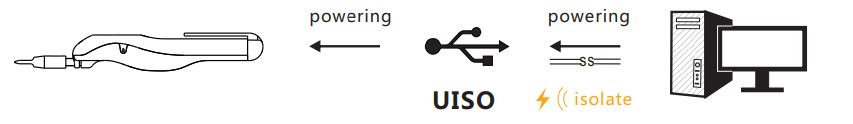

Creative USB isolation function fulfills direct device- powering via USB port, and supports floating measurement (isolation voltage upto 1000V), making the operation more user-friendly, assuring safer T&M environment, and decreasing the interference to micro signal- measuring to the minimum.
| Model | RDS1021 | |
|---|---|---|
| Bandwidth | 25MHz | |
| Sample Rate | 100MS/s | |
| Horizontal Scale (s/div) | 5ns/div - 100s/div, step by 1 - 2 - 5 | |
| Rise Time | ≤14ns | |
| Record Length | 5K | |
| Input Coupling | DC, AC, and GND | |
| Input Impedance | 10MΩ±2% (X 10), 1MΩ±2% (X1) | |
| Input Capacitance | 20pF±5pF | |
| Max Input Voltage | 50V (DC + AC peak) | |
| DC Gain Accuracy | ±3% | |
| DC Accuracy (average) | average≥16 : ±(3% reading + 0.05 div) for △V | |
| Analog Bandwidth | 25MHz | |
| Probe Attenuation Factor | 1X, 10X | |
| LF Respond (AC, -3dB) | ≥10Hz | |
| Interpolation | sin(x)/x | |
| Displacement | ±10 divisions | |
| Interval (△T) Accuracy (full bandwidth) | Single : ±(1 interval time + 100ppm × reading + 0.6ns), Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns) |
|
| Vertical Resolution (A/D) | 8 bits | |
| Vertical Sensitivity | 5mV/div - 5V/div | |
| Trigger Type | Edge, Pulse, and Slope | |
| Trigger Mode | Auto, Normal, and Single | |
| Trigger Level | ±5 di visions from screen center | |
| Acquisition Mode | Sample, Peak Detect, and Average | |
| Cursor Measurement | △ V and △T between cursors | |
| Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty | |
| Waveform Math | FFT | |
| Communication Interface | USB2.0 | |
| Dimension (W x H x D) | 150 x 20 x 18 (mm) | |
| Device Weight | 0.27 kg | |
