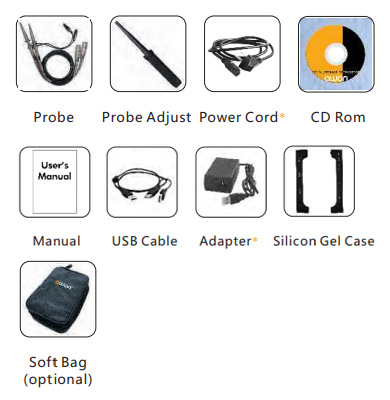

The accessories subject to final delivery.
*Power cord and adapater only available for models with LAN port.
Model No.: VDS1022I
PC Oscilloscope
| Model | VDS1022I | |
|---|---|---|
| Bandwidth | 25MHz | |
| Channel | 2+1 (multi) | |
| Sample Rate | 100MS/s | |
| Horizontal Scale (s/div) | 5ns/div - 100s/div, step by 1 - 2 - 5 | |
| Rise Time | ≤14ns | |
| Record Length | 5K | |
| Input Coupling | DC, AC, and GND | |
| Input Impedance | 1MΩ ± 2%, in parallel with 10pF ± 5pF | |
| Channel Isolation | 50Hz : 100 : 1 ; 10MHz : 40 : 1 | |
| Max Input Voltage | 400V (DC + AC peak) | |
| DC Gain Accuracy | ±3% | |
| DC Accuracy | Average≥16 : ±(3% reading + 0.05 div) for △T | |
| Probe Attenuation Factor | 1X，10X，100X，1000X | |
| LF Respond (AC, -3dB) | ≥10Hz (at input, AC coupling, -3dB) | |
| Sample Rate / Relay Time Accuracy | 150ps | |
| Interpolation | sin(x)/x | |
| Interval (△T) Accuracy (full bandwidth) | Single : ± (1 interval time + 100ppm × reading + 0.6ns), Average >16 : ±(1 interval time + 100ppm × reading + 0.4ns) |
|
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) | |
| Vertical Sensitivity | 2mV/div - 5V/div | |
| Trigger Type | Edge, Pulse, Video, Slope, and Alternate | |
| Trigger Mode | Auto, Normal, and Single | |
| Trigger Level | ±5 divisions from screen center | |
| Acquisition Mode | Sample, Peak Detect, and Average | |
| Line / Field Frequency (video) | NTSC, PAL, and SECAM standard | |
| Cursor Measurement | △V, and △T between cursors | |
| Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty | |
| Waveform Math | +, -, *, /, invert, FFT | |
| Lissajous Figure | Bandwidth | full bandwidth |
| Phase Difference | ±3 degrees | |
| Communication Interface | USB2.0 (isolation) | |
| Multi-function Interface | Signal Type | synchronized input / output, Pass / Fail , external trigger input |
| Level Standard | TTL | |
| Power Supply | 5.0V/500mA | |
| Power Consumption | ≤2.5W | |
| Dimensions (W x H x D) | 170 x 120 x 18 (mm) | |
| Device Weight | 0.26 kg | |
