Owon Powerful n-in-1 on-site Measurement Station Oscilloscope with Multimeter Enlarge View Download PDF Print

Share

Owon Oscilloscope with Multimeter and  Arbitrary Waveform Generator

Application

  • Electronic circuit debugging
  • Circuit testing
  • Design and Manufacture
  • Education and Training
  • Automobile maintenance and testing

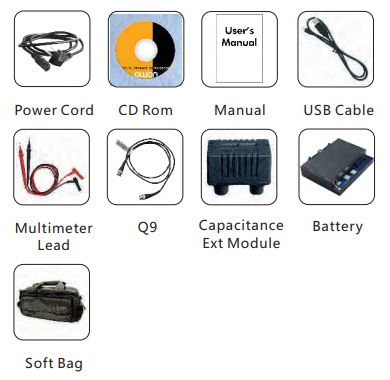

Accessories

The accessories subject to final delivery.

Quick Enquiry

Enter Your Details

XDS Series

60 MHz., 2CH, 1GS/s, 25MHz. AWG, Multimeter, TouchScreen, VGA, USB+Software

Model No.: XDS 3062A

your powerful n-in-1 on-site measurement station

Super Performance

  • 12-bit high resolution ADC, restoring the waveform detail fully
  • 40M record length, and 75,000 wfms/s waveform refresh rate

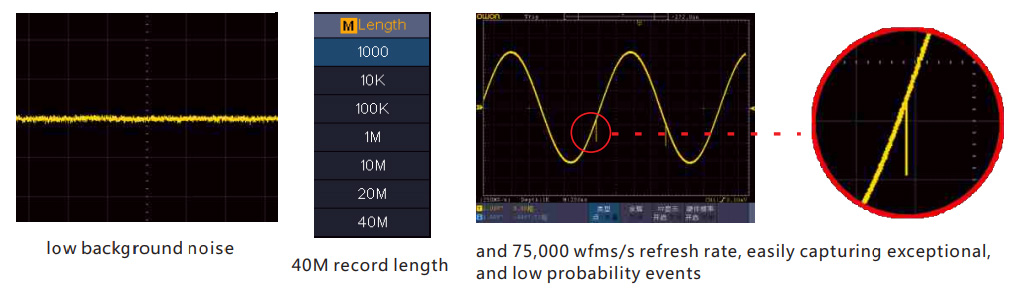

  • low background noise, vertical sensitivity in 1 mV/div - 10 V/div
  • multi- trigger, and bus decoding function
  • SCPI, and LabVIEW supported

Creative New Look

  • ultra-thin body-design, less space accommodation

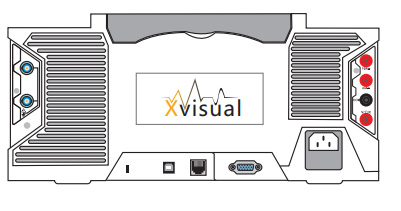

  • multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more
  • VGA port - better solution for video expansion, and teaching demonstration
  • 8 inch 800 x 600 high resolution LCD
  • optional multi-point touch screen, more user-friendly operation experience

n-in-1

functions as data logger, and multimeter with data logging function,
and dual-channel 25MHz arbitrary waveform generator,
furthermore, battery pack supported

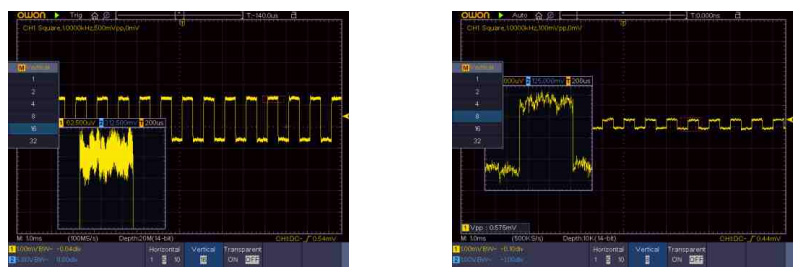

1. XDS series introduce 12 bits hardware ADC, the precision is 16 times against other oscilloscope on market. Equipping with OWON's original magnifier function, it can observe the signal low down to 31.25μV/div.


2. Xvisual platform - restore the waveform detail fully

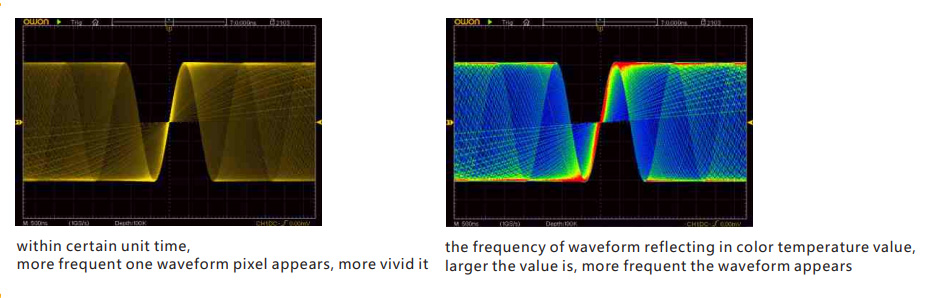

3. multi-level grayscale, and color temperature display

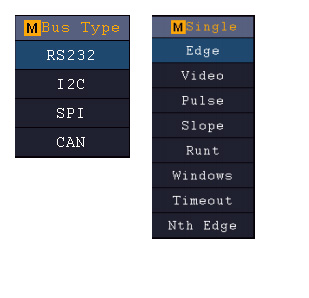

4. multi-trigger supported - Logic, Time-out, I C, SPI, RS232, Runt, Windows, Nth Edge, and CAN


5. serial bus coding available in I2C, SPI, RS232, and CAN

6. built-in multimeter module, with auto-scale, and data logging function

7. built-in dual-channel 25MHz arbitrary waveform generator module, with sample rate of 125MS/s

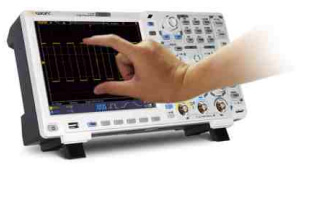

8. Its multi-point touchscreen improves operation efficiency considerably

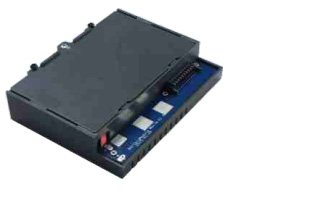

9. optional battery makes floating measurements possible, advancing the operation convenience

Performance Specifications

Model XDS3062A
Bandwidth 60 MHz
Sample Rate 1GS/s
Vertical Resolution (A/D) 12 bits
Record Length 40M
Waveform Refresh Rate 75,000 wfms/s
Horizontal Scale 2ns/div - 1000s/div, step by 1 - 2 - 5
Rise Time (at input, typical) ≤5.8ns
Channel 2 + 1 (external)
Display 8" color LCD, 800 x 600 pixels
Input Impedance 1MΩ ± 2 %, in parallel with 15pF ± 5pF
Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 1MΩ ≤ 300Vrms; 50Ω ≤ 5Vrms
DC Gain Accuracy ±1.5%
DC Accuracy average ≥ 16 : ±(3% reading + 0.05 div) for △V
Probe A ttenuation Factor 0.001X - 1000X, step by 1 - 2 - 5
LF Respond (AC, -3dB) ≥10Hz (at input, AC coupling, -3dB)
Sampling Rate / Relay Time Accuracy ± 1ppm
Interpolation sin(x) / x, x
Interval (△T) Accuracy (full bandwidth) Single : ±(1 interval time + 1ppm x reading + 0.6ns);
A verage > 16 : ±(1 interval time + 1ppm x reading + 0.4ns)
Input Coupling DC, AC, and GND
Vertical Sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, T imeout, Nth Edge, Logic, I C, SPI, RS232, and CAN
Bus Decoding* I2C, SPI, RS232, and CAN
Trigger Mode Auto, Normal, and Single
Vertical Range ±2V ( 1mv/div - 50mv/div), ±20V ( 100mv/div - 1V/div), ±200V (2V/div - 10V/div)
Line / Field Frequency (video) NTSC, PAL, and SECAM standard
Cursor Measurement △V, and △T between cursors, △V and △T between cursors, and auto- cursors
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B , Delay A→B , +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count
Waveform Math +, -, *, /, FFT
Waveform Storage 100 waveforms
Lissajous Figure Bandwidth full bandwidth
Phase Difference ±3 degrees
Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA
Frequency Counter available
Power Supply 100 - 240 V AC, 50 / 60Hz, CAT II
Power Consumption <15W
Fuse 2A, T class, 250V
Battery (optional) 3.7V, 13200 mAh
Dimension (W x H x D) 340 x 177 x 90 (mm)
Device Weight 2.60 kg

Multimeter Specifications


Full Scale Reading 3 ¾ digits (max 4000 count) Diode 0V - 1.5V
Input Impedance 10MΩ Continuity Test <50 (±30) beeping
Capacitance 51.2nF - 100uF: ±(3% ± 3 digits)
Voltage VDC : 400mV, 4V, 400V: ±(1 ± 1 digit); max input: DC 1000V
VAC: 4V, 40V, 400V: ±(1 ± 3 digits); frequency: 40Hz - 400Hz; max input: AC 400V (virtual value)
Current DC: 40mA, 400mA: ±(1.5% ± 1 digit); 10A: ±(3% ± 3 digits)
AC: 40mA: ±(1.5% ± 3 digits), 400mA: ±(2% ± 1 digit), 10A: ±(3% ± 3 digits)
Impedance 400Ω: ±(1% ± 3 digits), 4 KΩ - 40MΩ: ±(1% ± 1 digit)

Arb Waveform Generator Specifications


Max Frequency Output 25MHz
Sample Rate 125MS/s
Channel available in 1-ch, or 2-ch
Vertical Resolution 14 bits
Amplitude Range 2mVpp - 6Vpp
Waveform Length 8K
Standard Waveform Sine, S quare, Pulse, and Ramp

Decoding Kit


DEC RS232 / SPI / IIC
CAN CAN decoding

Module / Function


VGA + AV port
Touch Screen
