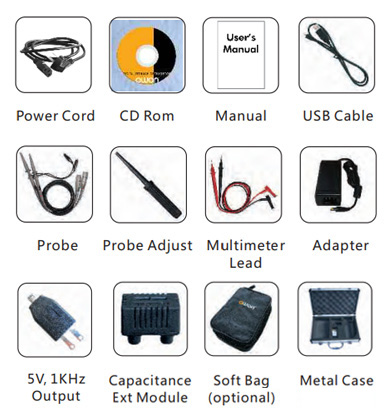

The accessories subject to final delivery.
Model No.: HDS 1022M-N
2-channel Handheld Digital Storage Oscilloscope
| Model | HDS1022M-N | |
|---|---|---|
| Bandwidth | 20MHz | |
| Sample Rate | 100MS/s | |
| Horizontal Scale (s/div) | 5ns/div - 100s/div, step by 1 - 2.5 - 5 | |
| Rise Time (at input, typical) | ≤ 17.5ns | |
| Display | 3.7" color TFT display (640 x 480 pixels) | |
| Channel | dual | |
| Input Impedance | 1MΩ ± 2%, in parallel with 20pF ± 5pF | |
| Record Length | 6K points | |
| Interpolation | sin (x) / x | |
| Probe Attenuation Factor | 1X，10X，100X，1000X | |
| Input Coupling | DC, AC, and GND | |
| DC Accuracy (average) | average >16 : ±(5% reading + 0.05 div) for △V | |
| Vertical Sensitivity | 5mV/div - 5V/div (at input) | |
| Vertical Resolution (A/D) | 8 bits | |
| Max Input Voltage | 400V (DC + AC peak, 1MΩ input impedance, probe attenuation 10 : 1), CAT II | |
| Trigger Type | Edge, Video, and Alternate | |
| Trigger Mode | Auto, Normal, and Single | |
| Trigger Level | ±6 divisions from screen center | |
| Acquisition Mode | Sample, Peak Detect, and Average | |
| DC Gain Accuracy | ±3% | |
| Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty | |
| Waveform Math | +, -, *, /, invert, FFT | |
| Waveform Storage | 4 waveforms | |
| Lissajous Figure | Bandwidth | full bandwidth |
| Phase Difference | ± 3degrees | |
| Communication Interface | USB | |
| Power Supply | 100V-240V AC, 50/60Hz | |
| Li-ion Battery | 7.4V, 6 hours' operation | |
| Dimensions (W x H x D) | 115 x 180 x 40 (mm) | |
| Device Weight | 645.00 g | |
| Full Scale Reading | 3¾ digits (max 4000 count) |
| Input Impedance | 10 MΩ |
| Voltage | VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz; max input : AC 750V (virtual value) |
| Current | DC : 40mA, 400mA : ±(1.5% ± 1 digit), 10A : ±(3% ± 3 digits) AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 10A : ±(5% ± 3 digits) |
| Impedance | 400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits |
| Capacitance | 51.2nF - 100uF : ±(3% ± 3 digits) |
| Diode | 0V - 1.5V |
| On / Off Test | <50 (± 30) beeping |
| Specifications subject to change without prior notice |
