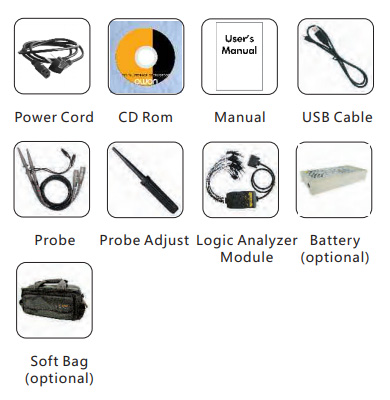

The accessories subject to final delivery.
Model No.: MSO 7062TD
Mixed LA - Oscilloscope
Digital Storage Oscilloscope
Logic Analyzer
| Model | MSO7062TD | |
|---|---|---|
| Bandwidth | 60MHz | |
| Sample Rate | 1GS/s | |
| Rise Time | ≤5.8ns | |
| Display | 8'' color LCD , 640 x 480 pixels | |
| Channel | dual + external trigger | |
| Horizontal Scale (s/div) | 2ns/div - 100s/div, step by 1 - 2 - 5 | |
| DC Accuracy (average) | average>16 : ±(3% reading + 0.05div) for △V | |
| Vertical Sensitivity | 2mV/div - 10V/div | |
| DC Gain Accuracy | ±3% | |
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) | |
| Interpolation | sin (x) / x | |
| Max Input Voltage | 400V (DC + AC peak) | |
| Probe Attenuation Factor | 1X，10X，100X，1000X | |
| Trigger Mode | Edge, Video, Alternate, Pulse, and Slope | |
| Acquisition Mode | Normal, Peak Detect, and Average | |
| Record Length | 2M points | |
| Waveform Storage | 4 waveforms | |
| Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty | |
| Waveform Math | +, -, *, /, invert, FFT | |
| Power Supply | 100 - 240V AC, 50Hz / 60Hz, CAT II | |
| Lissajous Figure | Bandwidth | 60MHz |
| Phase Difference | ± 3degrees | |
| Communication Interface | USB host, VGA (optional), and USB device | |
| Fuse | 1A, T class, 250V | |
| Battery | 7.4V 8000mAh (optional) | |
| Dimensions (W x H x D) | 370 x 180 x 120 (mm) | |
| Device Weight | 2.20 kg | |
| Model | MSO7062TD | |
|---|---|---|
| Sample Rate | 20S/s - 1GS/s | |
| Bandwidth | 100MHz | |
| Channel | 16 | |
| Record Length | 4M points | |
| Input Impedance | 660KΩ ± 5%, in parallel with 15 ± 5pF | |
| Trigger Mode | Edge, Bus, State, Data Alignment, Data Width, and Distributed Queue | |
| Trigger Position Setting | Pre-trigger, Mid-trigger, and Re-trigger | |
| Threshold Voltage | ±6V (4 settings) | |
| Input Signal Range | ±30V | |
| Data Search | available | |
| Data System | binary, decimal, and hex | |
| Digital Filter | 0, 1, 2 optional | |
| Setting Storage | 10 settings | |
| USB Flash Disk Storage | available | |
