Owon 8 large display Digital Oscilloscope Enlarge View Download PDF Print

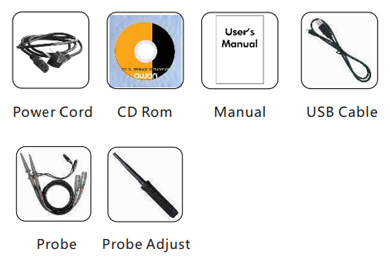

The accessories subject to final delivery.

Owon Digital Oscilloscope Dealers in India

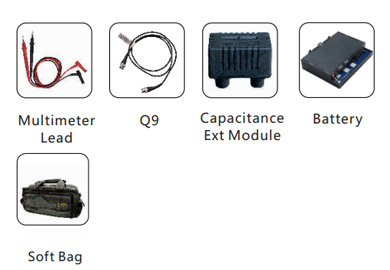

Optional accessories:

Owon Large Display Digital Oscilloscopes

Quick Enquiry

Enter Your Details

4-CH XDS Series

60 MHz. , 4CH, Coloured LCD 8 “, 1GS/s, USB+Software

Model No.: XDS3064E

8" large display Digital Oscilloscope

Performance Specifications

Model XDS3064E
Bandwidth 60MHz
Sampling Rate 1GS/s
Vertical Resolution (A/D) 8 bits
Record Length 40M
Waveform Refresh Rate 45,000 wfms/s
Horizontal Scale 2ns/div - 1000s/div, step by 1 - 2 - 5
Rise Time (at input, typical) ≤5.8ns
Channel 4
Display 8" 800 x 600 pixels color LCD
Input Impedance 1MΩ ± 2 %, in parallel with 15pF ± 5pF
Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 1MΩ ≤ 300Vrms
DC Gain Accuracy ±3%
DC Accuracy average ≥ 16 : ±(3% reading + 0.05 div) for △V
LF Respond (AC, -3dB) ≥10Hz
Sampling Rate / Relay Time Accuracy ± 2.5ppm
Interpolation sin (x) / x
Interval (△T) Accuracy (full bandwidth) Single : ±(1 interval time + 1ppm x reading + 0.6ns);
Average > 16 : ±(1 interval time + 1ppm x reading + 0.4ns)
Input Coupling DC, AC, and GND
Vertical Sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I C, SPI, RS232, and CAN*
Bus Decoding* I2C, SPI, RS232, and CAN
Trigger Mode Auto, Normal, and Single
Line / Field Frequency (video) NTSC, PAL, and SECAM standard
Cursor Measurement △V, and △T between cursors, △V and △T between cursors, and auto- cursors
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B , Delay A→B ,Phase A→B , Phase A→B , +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area
Waveform Math +, -, *, / , FFT, FFT rms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)
Waveform Storage 100 group
Lissajous Figure Bandwidth full bandwidth
Phase Difference ±3 degrees
Communication Interface USB host, USB device, Trig Out (P/F), LAN, and VGA*
Frequency Counter available
Power Supply 100 - 240 V AC, 50 / 60Hz, CAT II
Fuse 2A, T class, 250V
Battery 3.7V, 13200 mAh
Dimension (w/h/d) 340 x 177 x 90 (mm)
Device Weight 2.60 kg
* marked items is optional Specifications subject to change without prior notice
