Model No.: B 35T
Bluetooth Digital Multimeter

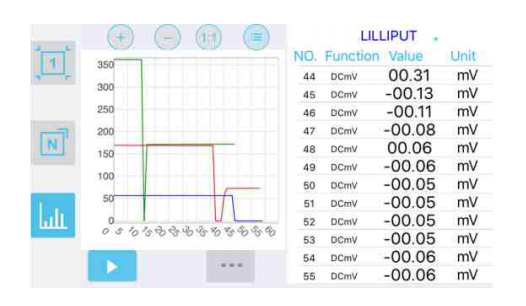

the measured data always updated, and auto- recorded to mobile device, saving labor to do on-site records; the recoding duration, and sampling duration could be customized, accessible in chart mode, facilitating comparison analysis between several multimeters

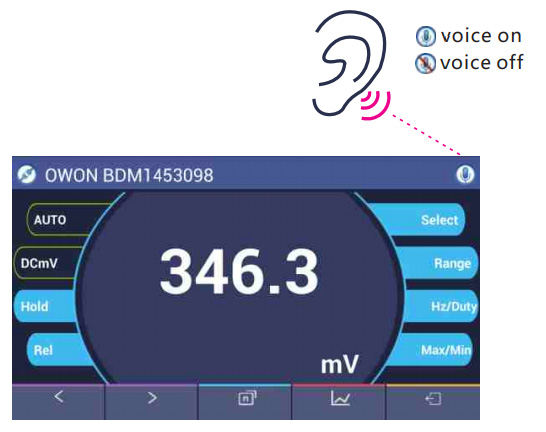

the function activated after TTS voice pack installed, which frees the eye-watch, making on-site measurement more comfortable

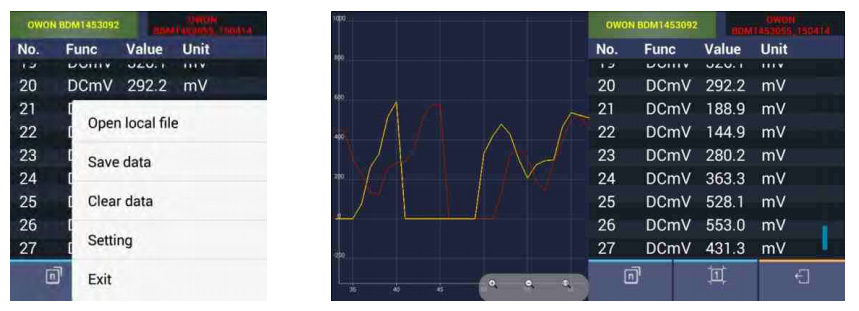

CSV format data export supported, the history data could be recalled for comparison analysis; with the assistance of chart mode, the measured result more visualized, easier for decision- making
| Model No. | B 35T | ||||
|---|---|---|---|---|---|
| Measurement Range | Resolution | Accruacy | |||
| DC Voltage | mV | 60.00mV / 600.0mV | 0.01mV | ||
| V | 60.00mV / 600.0mV / 6.000V / 60.00V | 0.1mV | ±(0.5%+2-digit) | ||
| 600.0V / 1000V | 0.1V | ||||
| AC Voltage | mV | 60.00mV / 600.0mV | 0.01mV | ±(0.8%+2-digit) | |
| V | 60.00mV / 600.0mV / 6.000V / 60.00V | 1mV | ±(0.8%+2-digit) | ||
| 600.0V / 750V | 0.1V | ±(1%+3-digit) | |||
| DC Current | μA | 600.0μA | 0.1μA | ±(0.8%+2-digit) | |
| mA | 600.0μA / 6.000mA / 60.00mA / 600.0mA / 6.000A | 0.01mA | ±(0.8%+2-digit) | ||
| A | 20.00A | 1mA | ±(1.2%+3-digit) | ||
| AC Current | μA | 600.0μA | 0.1μA | ±(1%+3-digit) | |
| mA | 600.0μA / 6.000mA / 60.00mA / 600.0mA / 6.000A | 0.01mA | ±(0.8%+2-digit) | ||
| A | 20.00A | 1mA | ±(2%+3-digit) | ||
| Resistance | 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ / 10.00MΩ | 0.1Ω | ±(0.8%+2-digit) | ||
| 60.00MΩ | 0.01MΩ | ±(2%+3-digit) | |||
| Capacitance | 40.00nF | 0.01nF | ±(2.5%+3-digit) | ||
| 400.0nF / 4.000μF / 40.00μF | 0.1nF | ±(2.5%+3-digit) | |||
| 400.0μF / 4000μF | 0.1μF | ±(3%+5-digit) | |||
| Frequency | 9.999Hz / 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz | 1mHz | ±(0.8%+2-digit) | ||
| Duty Ratio | 0.1% - 99.9% (typical value: Vrms = 1V, f = 1kHz) | 0.1% | ±(1.2%+3-digit) | ||
| 0.1% - 99.9% (≥1kHz) | ±(2.5%+2-digit) | ||||
| Temperature | (-50°C) - (+400°C) | 1°C | ±(2.5%+3-digit) | ||
| (-58°F) - (+752°F) | 1°F | ±(4.5%+5-digit) | |||
| Display | 6000 count | LCD Size | 69mm x 52mm | ||
| Frequency Response | 40Hz - 400Hz | Display Area | 67 x 46 mm (effective area 66 x 45 mm) | ||
| Shift Rate | 3 times/s | Battery | 3V (1.5V x 2) | ||
| Simulated Chart Shift Rate | 30 times /s | Dimension (W x H x D) | 85 x 185 x 30 (mm) | ||
| Input Impedance | 10MΩ | Device Weight | 0.32 kg | ||
| Auto-scale | √ | Max / Min Value | √ | ||
| Bluetooth Module | √ | LCD Backlight | √ | ||
| True RMS | √ | Simulated Chart | √ | ||
| Diode Test | √ | Input Protection | √ | ||
| Audion Test | √ | Auto Power-off | √ | ||
| On-off Warning | √ | Low-battery Indicator | √ | ||
| Data Hold | √ | Relative Measurement | √ | ||
