Owon Deep Memory Digital Storage Oscilloscope with USB+Software Enlarge View Download PDF Print

Share

Owon Deep Memory Digital Storage Oscilloscope Dealers

Application

  • Electronic circuit debugging
  • Circuit testing
  • Design and Manufacture
  • Education and Training
  • Automobile maintenance and testing

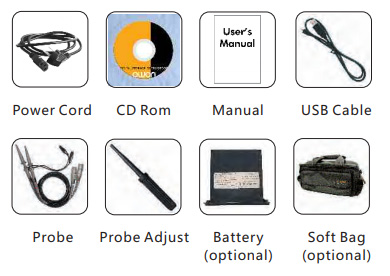

Accessories

The accessories subject to final delivery.

Quick Enquiry

Enter Your Details

Smart DS Series

60 MHz.,2 CH, Coloured LCD 8 “, 500MS/s, USB+Software

Model No.: SDS6062

Deep Memory Digital Storage Oscilloscope

  • Bandwidth : 60MHz - 200MHz
  • Sample rate : 500MS/s - 2GS/s
  • 10M record length for each channel
  • Smart design with easy portability
  • Large 8 inch 800 x 600 pixels LCD
  • LAN remote control
  • Multi-function : auto-scale, Pass / Fail, current measurement, and digital filtering
  • SCPI, and LabVIEW supported
  • Optional BATTERY available

Performance Specifications

Model SDS6062
Bandwidth 60MHz
Sample Rate 500MS/s
Horizontal Scale (s/div) 5ns/div - 100s/div, step by 1 - 2 - 5
Rise Time ≤5.8ns
Display 8”color LCD, 800 x 600 pixels
Channel 2 + 1 (external)
Record Length 10M
Input Coupling DC, AC, and GND
Input Impedance 1MΩ ± 2%, in parallel with 15pF ± 5pF
Channel Isolation 50MHz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 400V (DC + AC Peak)
DC Gain Accuracy ±3%
DC Accuracy average ≥ 16 : ±(3% reading + 0.05 div) for △V
Probe Attenuation Factor 1X, 10X, 100X, 1000X
LF Respond (AC, -3dB) ≥10Hz (at input, AC coupling, -3dB)
> Sample Rate / Relay Time Accuracy ±100ppm
Interpolation sin (x) / x
Interval (△T) Accuracy (full bandwidth) Single:±(1 interval time + 100ppm × reading + 0.6ns);
Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns)
Vertical Resolution (A/D) 8 bits (2 channels simultaneously)
Vertical Sensitivity 2mV/div - 10V/div
Digital Filtering low-pass, high-pass, band-pass, and band-reject
Trigger Type Edge, Pulse, Video, Slope, and Alternate
Trigger Mode Auto, Normal, and Single
Trigger Level ±6 divisions from screen center
Acquisition Mode Sample, Peak Detect, and Average
Line / Field Frequency (video) NTSC, PAL, and SECAM standard
Cursor Measurement △V, and △T between cursors
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty, Duty cycle
Waveform Math +, -, *, /, invert, FFT
Waveform Storage 15 waveforms
Lissajous Figure Bandwidth full bandwidth
Phase Difference ±3 degrees
Communication Interface USB host, USB device, Pass / Fail, LAN, VGA (optional), and RS232 (optional)
Frequency Counter available
Power Supply 100V - 240V AC, 50/60Hz, CAT II
Power Consumption <18W
Fuse 2A, T class, 250V
Battery (optional) 7.4V, 8000mA
Dimension (W x H x D) 340 x 155 x 70 (mm)
Device Weight 1.80 kg
