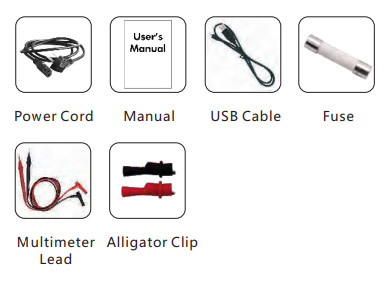

The accessories subject to final delivery.
Model No.: XDM 3051
Bench-type Digital Multimeter

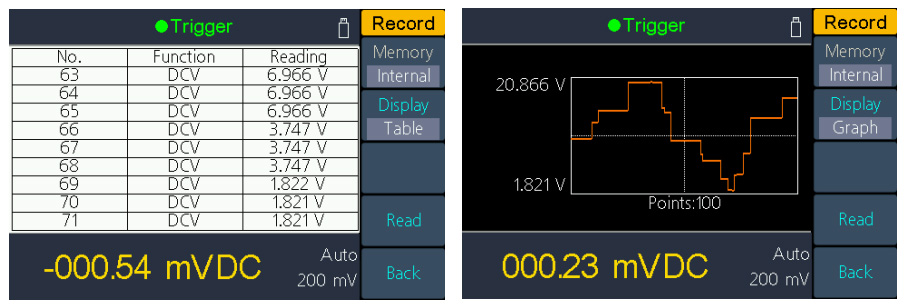

during recording the measurement value, possible to set the logging duration (min. 5ms), and length, then get access to chart or table result
| XDM3051 | Measurement Range | Frequency Range | Accuracy: 1 Year ± (% of reading +% of range) |
|---|---|---|---|
| DC Voltage | 200mV, 2V, 20V, 200V, 1000V | / | 0.015 ± 0.004 |
| True RMS AC Voltage | 200mV, 2V, 20V, 200V, 750V | 20Hz - 45Hz | 1.5 + 0.10 |
| 45Hz - 20kHz | 0.2 + 0.05 | ||
| 20kHz -50kHz | 1.0 + 0.05 | ||
| 50kHz -100 kHz | 3.0 + 0.05 | ||
| DC Current |
200.000 μA | / |
0.055 + 0.005 |
| 2.00000 mA | 0.055 + 0.005 | ||
| 20.0000 mA | 0.095 + 0.020 | ||
| 200.000 mA | 0.070 + 0.008 | ||
| 2.00000 A | 0.170 + 0.020 | ||
| 10.0000 A | 0.250 + 0.010 | ||
| True RMS AC Current |
20.0000 mA, 200.000 mA 2.00000 A, 10.0000 A |
20Hz - 45Hz | 1.5 + 0.10 |
| 45Hz - 2kHz | 0.50 + 0.10 | ||
| 2kHz - 10kHz | 2.50 + 0.20 | ||
| Resistance |
200.000 Ω | / |
0.030 + 0.005 |
| 2.00000 kΩ | 0.020 + 0.003 | ||
| 20.0000 kΩ | 0.020 + 0.003 | ||
| 200.000 kΩ | 0.020 + 0.003 | ||
| 2.00000 MΩ | 0.040 + 0.004 | ||
| 10.0000 MΩ | 0.250 + 0.003 | ||
| 100.000 MΩ | 1.75 + 0.004 | ||
| Diode Test | 2.0000 V | / | 0.05 + 0.01 |
| Continuity | 2000 Ω | / | 0.05 + 0.01 |
| Frequency Period | 200 mV - 750 V | 20 Hz - 2 kHz | 0.01 + 0.003 |
| 2 kHz - 20 kHz | 0.01 + 0.003 | ||
| 20 kHz - 200 kHz | 0.01 + 0.003 | ||
| 200 kHz - 1 MHz | 0.01 + 0.006 | ||
| 20 mA - 10 A | 20 Hz - 2 kHz | 0.01 + 0.003 | |
| 2 kHz - 10 kHz | 0.01 + 0.003 | ||
| Test Current | |||
Capacitance |
2.000 nF | 200 nA | 3 + 1.0 |
| 20.00 nF | 200 nA | 1 + 0.5 | |
| 200.0 nF | 2 μA | 1 + 0.5 | |
| 2.000 μF | 10 μA | 1 + 0.5 | |
| 200 μF | 100 μA | 1 + 0.5 | |
| 10000 μF | 1 mA | 2 + 0.5 | |
| Temperature | temperature sensors under 2 categories supported - thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type), and thermal resistance (RTD sensor conversion between Pt100 and Pt385 type) | ||
| Miscellaneous | barmeter | bar charts, trend chart | V avg, Vmax, Vmin | standard deviation | DB / DBm | Pass / Fail | ||
| Data-logger Function | |||
| Logging Duration | 5ms | ||
| Logging Length | 1M points | ||
| General | |||
| Dimension (W x H x D) | 235 x 110 x 295 (mm) | ||
| Device Weight | 3.00 kg | ||
