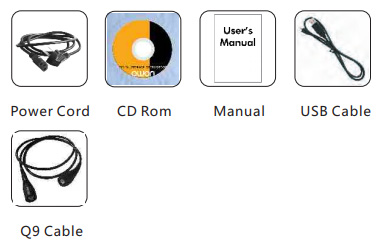

Accessories

The accessories subject to final delivery.

Quick Enquiry

Enter Your Details

Arbitrary Wave Function Generator, 25 MHz,2 CH, 4"Coloured LCD, USB+Software

Model No.: AG 1022F

Dual-channel Arbitrary Waveform Generator

  • Advanced DDS technology, 25MHz frequency output
  • Up to 125MS/s sample rate, and 1μHz frequency resolution
  • Vertical Resolution : 14 bits, up to 1M arb waveform length
  • Comprehensive waveform output : 5 basic waveforms, and 45 built-in arbitrary waveforms
  • Comprehensive modulation functions : AM, FM, PM, FSK, PWM, Sweep, and Burst
  • High-accuracy frequency counter integrated, supported range 100mHz - 200MHz
  • SCPI, and LabVIEW supported
  • 4 inch high resolution (480 x 320 pixels) LCD
  • could work with OWON SDS Series DSO smoothly

Performance Specifications

Model No. AG1022F
Channel dual
Frequency output 25MHz
Sample Rate 125MS/s
Vertical Resolution 14 bits
Waveform
Standard Waveform Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform
Frequency (resolution 1μHz)
Sine 1μHz - 25MHz
Square 1μHz - 5MHz
Pulse 1μHz - 5MHz
Ramp 1μHz - 1MHz
Noise 25MHz (-3dB) (typical)
Arbitrary Waveform 1μHz - 10MHz
Amplitude
Amplitude 1m Vpp - 10 Vpp (50Ω),
1m Vpp - 20 Vpp (high impedance)
Resolution 1m Vpp or 4 digits
DC Offset Range (AD+DC) ±5V (50Ω), ±10V (high impedance)
DC Offset Range Resolution 1mV or 4 digits
Load Impedance 50Ω (typical)
Arbitrary Waveform
Wave Length 2 pts to 8K pts
Non-volatile Memory 64M byte
Modulation
Modulation Waveform AM, FM, PM, FSK, Sweep, and Burst
Modulation Frequency 2mHz to 20.00KHz (FSK 1μHz - 100KHz)
Counter
Function Frequency Period, +Width, -Width, +Duty, and -Duty
Frequency Range 100mHz - 200MHz
Frequency Resolution 6 digits
Power Amplifier Module (optional)
Input Impedance 50 kΩ
Max Input Voltage 2.2Vpp
Max Output Voltage 22 Vpp
Output Slew Rate 10V/us
Max Output Power 10W
Output Impedance <2 Ω
Gain X10
Offset <7%
Bandwidth (at full power) DC 100kHz
Input / Output
Display 4 inch (480 x 320 pixels) LCD
Type counter
external modulation input,
external trigger input, external reference clock input / output
External Frequency Measurement: supported, ranging from 100 MHz till 200 MHz
Communication Interface USB host, and USB device, RS232 (option)
Mechanical
Dimension (W x H x D) 235 x 110 x 295 (mm)
Device Weight 3.00 kg
