Mastech Power Clamp with Harmonics Enlarge View Download PDF Print

Share

Mastech Power Clamp with Harmonics in India

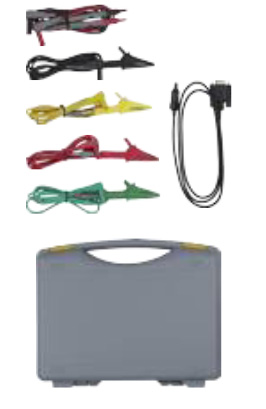

Accesories Included


Power Clamp with Harmonics Dealers

Quick Enquiry

Enter Your Details

Power Clamp with Harmonics, 3Phase, USB + Software

Model No.: MS2205

Specifications Range Resolution Accuracy
AC Voltage 100V/300V/600V 0.1V
80V/180V/400V/600V 0.1V/0.1V/1V/1V ±(1.0%+5)
AC Current 40A/100A/400A/1000A 0.1A/0.1A/0.1A/1A
20A/40A/100A/200A/450A/1000A 0.01A/0.01A/0.1A/0.1A/1A/1A ±(2.0%+5)
Active Power 4kW/10kW/40kW/100kW 0.01kVA
600kW 0.1kW
30kW/60kW/120kW 0.01kW/0.01kW/0.1kW ±(3.0%+5)
150kW/300kW/600kW 0.1kW ±(3.0%+5)
Apparent Power 4kVA/10kVA/40kVA/100kVA 0.01kVA
600kVA 0.1k VA
3kVA/12kVA/30kVA 0.001kVA/0.01kVA/0.01kVA ±(3.0%+5)
120kVA/150KVA/600kVA 0.1kVA ±(3.0%+5)
Reactive Power 4kVAr/10kVAr/40kVAr/100kVAr 0.01kVAr
600kVAr 0.1kVAr
3kVAr/12kVAr/30kVAr 0.001kVAr/0.01kVAr/0.01kVAr ±(3.0%+5)
120kVAr/150KVAr/600kVAr 0.1kVAr ±(3.0%+5)
Power Factor 0.3~1 0.001 ±(2.0%+2)
Active Energy 1kWh~9999k Wh 0.001kWh
Frequency 20Hz ~1000Hz 0.1Hz
30Hz ~1000Hz 0.1Hz ±(0.5%+1)
Harmonic
Measurement
45Hz ~65Hz (fundamental)
Harmonic Number :1 ±(3.0%+10)
Harmonic Number :2-6 ±(3.5%+10)
Harmonic Number :7-8 ±(4.5%+10)
Harmonic Number :9-10 ±(5.0%+10)
Harmonic Number :11-15 ±(7.0%+10)
Harmonic Number :16-20 ±(10%+10)
Features
Display Counts 6000
Jaw Opening Ф50m m /2.0"
Auto Ranging Auto & Manual
APO Auto Power Off
Data Logging groups 100
True RMS True root mean square
Bar Graph
MAX/MIN MAX/MIN Measurement
Data Hold
Display Backlight
LBD Low Battery Display
RS232 Interface Windows OS
General
Power Supply 4×1.5V AA Batteries
Product Size 300mm ×103mm ×51mm /11.8"×4.1"×2.0"
Product Weight 640g/1.4lb
Certificate RoHS
