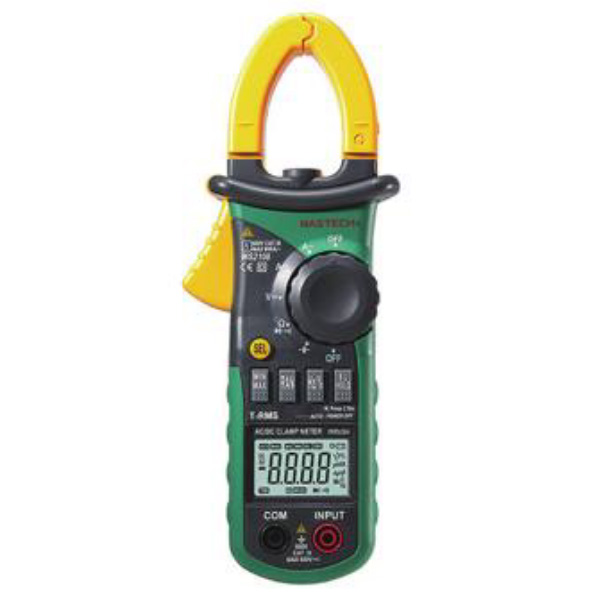

Mastech AC/DC Clamp Meter Enlarge View Download PDF Print


Mastech AC/DC Clamp Meter Suppliers

Accesories Included

  • Battery and User's Manual

Quick Enquiry

Enter Your Details

Mini Clamp 400A AC +DC, AC+DC Volt, Res, Cap, Freq

Model No.: MS2108

Specifications Range Resolution Accuracy
DC Voltage 660mV/6.6V/66V 0.1mV/0.001V/0.01V ±(0.8%+3)
600V 0.1V ±(1.0%+5)
AC Voltage 660mV 0.1mV ±(1.5%+10)
6.6V/66V 0.001V/0.01V ±(1.2%+5)
DC Current 66A/600A 0.01A/0.1A ±(3.0%+10)
AC Current 66A/600A 0.01A/0.1A ±(3.0%+10)
Inrush Current 66A/600A 0.01A/0.1A ±(10.0%+60)
Resistance 660Ω/6.6kΩ/66kΩ 0.1Ω/0.001kΩ/0.01kΩ ±(1.2%+2)
660kΩ/6.6MΩ 0.1kΩ/0.001MΩ ±(1.2%+2)
66MΩ 0.1MΩ ±(2.0%+5)
Capacitance 6.6μF/66μF/660μF 0.001μF/0.01μF/0.1μF ±(4.0%+50)
6.6mF/66mF 0.001mF/0.01mF ±(4.0%+3)
Frequency(V) 660Hz/6.6kHz/10kHz 0.1Hz/0.001kHz/0.01kHz ±(1.5%+5)
>10kHz 0.01kHz Reference
Frequency(V) 660Hz/6.6kHz/10kHz 0.1Hz/0.001kHz/0.01kHz ±(1.5%+5)
>10kHz 0.01kHz Reference
Frequency(A) 660Hz/1kHz 0.1Hz/0.001kHz ±(1.5%+5)
>1kHz 0.01kHz Reference
Duty Cycle 10%~95% 0.1% ±3.0%
Display Counts 6600
Jaw Opening Ф26mm /1.0"
Auto Ranging Auto & Manual
APO Auto Power Off
Inrush 100ms Current Integral
True RMS True root mean square
Diode Open Voltage 3.2V
Continuity Buzzer <50±20Ω
MAX/MIN MAX/MIN Measurement
Data Hold
Display Backlight
Work Light
LBD Low Battery Display
Power Supply 3×15V AAA Batteries
Product Size 208mm ×78mm ×53mm /8.2"×3.1''×1.4''
Product Weight 245g/0.54b
Certification CE/RoHS
Safety Rating CAT III 600V
